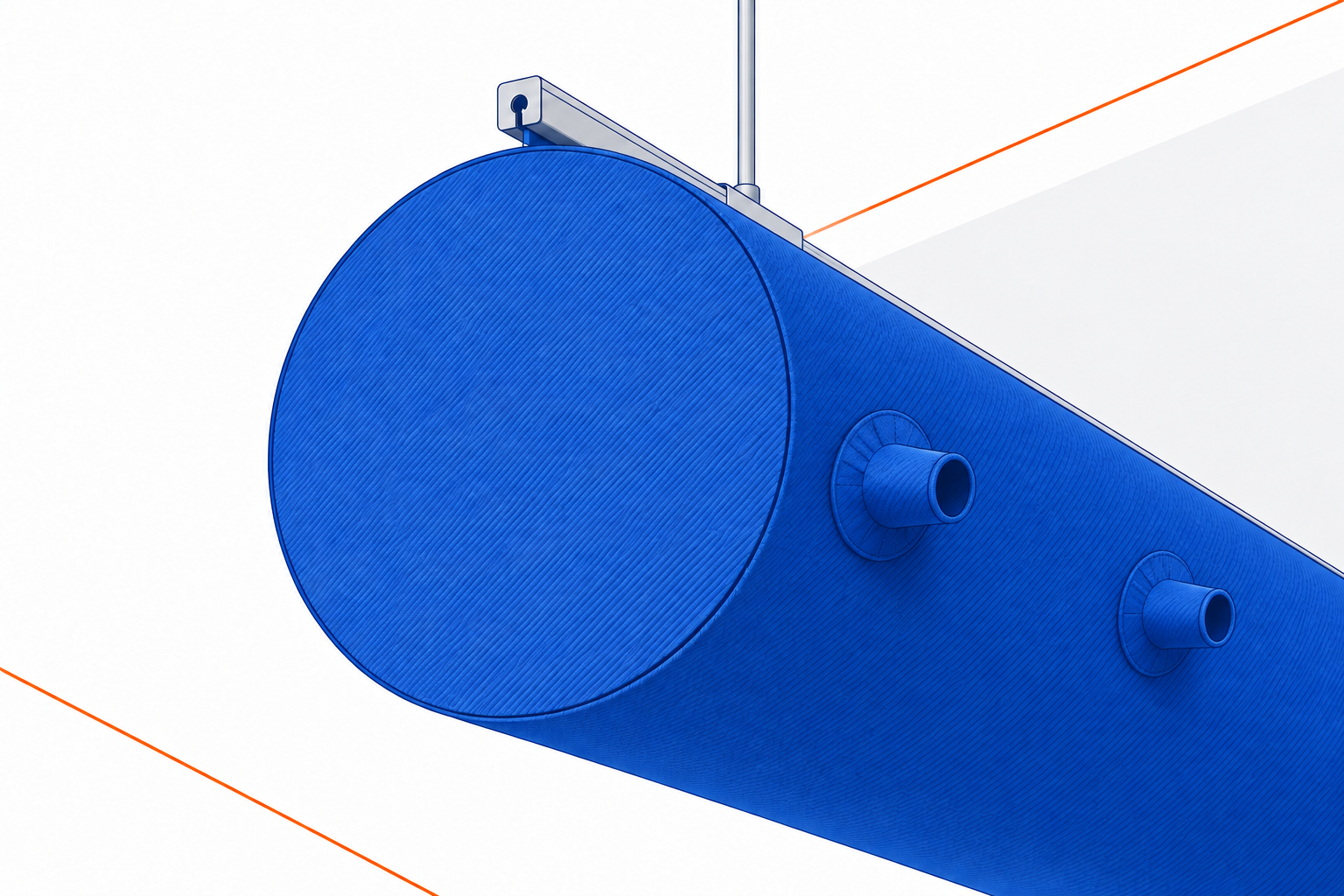

High Velocity Jet Nozzle

HV-JN

Outlet with long-throw nozzles for very long throw distances with low induction. Long-throw nozzles for airflow rates from 40 to 3,300 m³/h, freely adjustable by hand.
Application: Heating, Cooling, Ventilation

Textile air outlets with long-throw nozzles are primarily used to bridge large distances between the air outlet and the occupied zone. In large rooms, textile air outlets with long-throw nozzles are installed along the sides when uniform supply air distribution via ceiling air outlets is not possible.

Features

Due to temperature differences between the supply air and room air, the supply air jet is deflected upward during heating or downward during cooling. The direction of the supply air jet can also be affected by convection currents or lateral airflows within the room. The JN series textile long-throw nozzles can be rotated axially through 360°, allowing the supply air jet to be easily adapted to the respective local conditions. The direction of the supply air jet can be adjusted manually on site.

Due to their low installation height and color matching with the textile air outlet, ORAVEN long-throw nozzles offer an attractive design and are also suitable for comfort applications such as theaters, museums, exhibition halls, etc. An especially attractive appearance is achieved when shape-retaining rings are used with the textile air outlet. Together with the sound-absorbing properties of the textile air outlet, the aerodynamically optimized nozzle contour provides a high level of acoustic comfort.
