HV-N
Application: Heating, Cooling, Ventilation

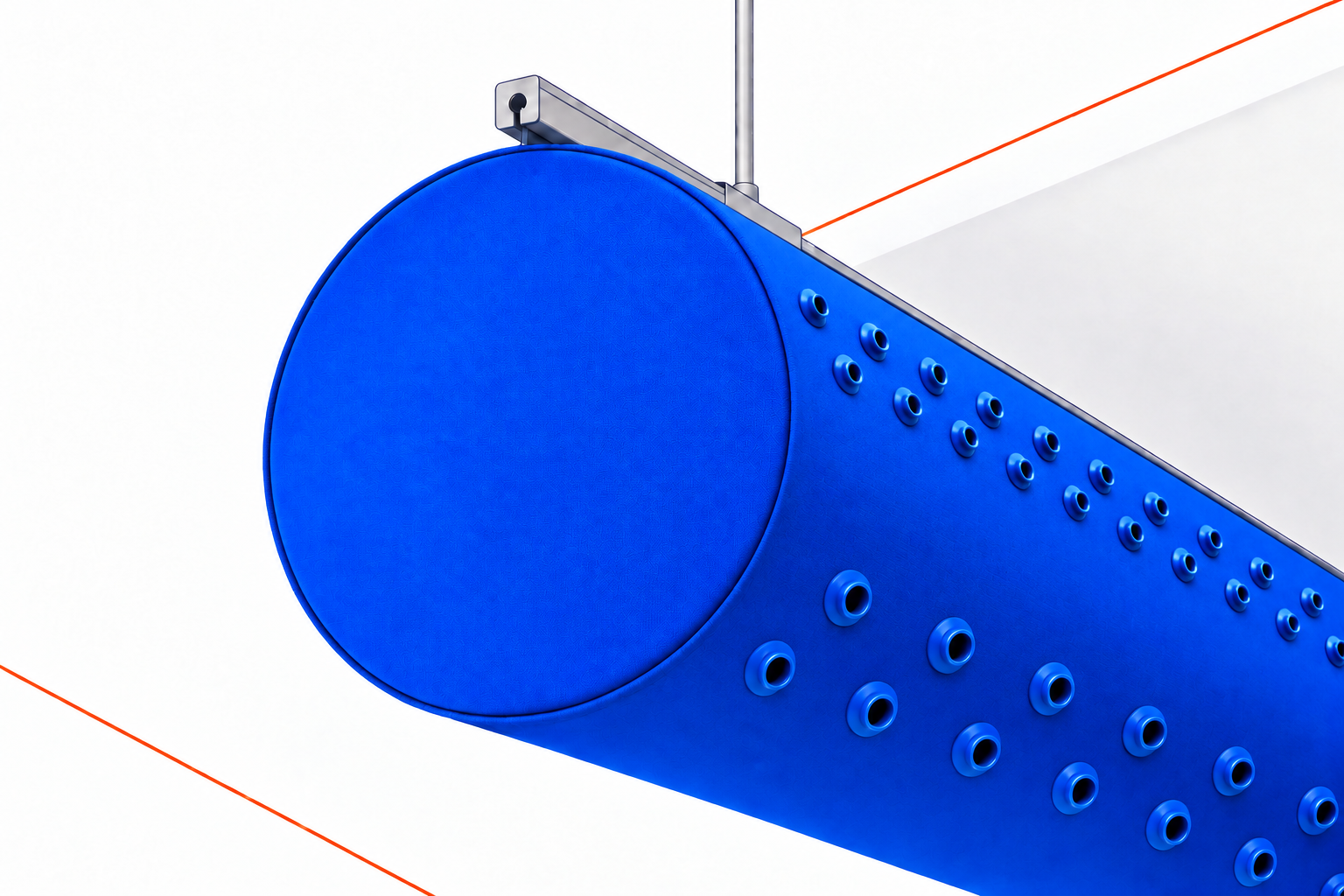

The air is discharged in a specific direction through plastic nozzles.
Q26
Mounting system with anodized aluminum rail for KS06 or full keder, including accessories up to the underside of the ceiling. Intermediate suspension up to 3,000 mm, profile length up to 6,000 mm.
Installation instructions for 2-row aluminum rail
Installation instructions for 1-row aluminum rail
S 03 + 04
Mounting system with 1.4401 stainless steel cable for Clip-On or SNH25, including accessories up to the underside of the ceiling. Tensioning fittings for unsupported spans up to 20,000 mm
Installation instructions for 2-row stainless steel cable
Installation instructions for 1-row stainless steel cable
Mounting system with anodized aluminum rail for full keder, with clearance from the ceiling or directly on the ceiling using Q26.
Installation instructions for aluminum rail – direct mounting
Installation instructions for aluminum rail – spaced mounting
Trevira CS
DIN 4102 B1
Special fabric, 100% Trevira CS. Twisted, long-staple fiber yarns for the highest quality. Shrinkage below 1%, no coating, no additives, no condensation.
Please note: Colors may appear differently on different monitors. The actual fabric color is similar to the corresponding RAL color.
Trevira CS bioactive
DIN 4102 B1
Special fabric, 100% Trevira CS with antimicrobial silver ions that permanently inhibit the growth of bacterial populations. Effectiveness is not impaired by washing. Efficiency tested against Gram-positive and Gram-negative bacteria.
Standard color: White.
Special colors: All colors from the Pantone color guide
