LV-DH
Textile displacement air outlets with a filtering effect are used to introduce cooled or isothermal air into the room.
Depending on the air permeability of the fabric, the filtering effect of the displacement air outlet corresponds to classes F5 to F7. Particles entering the displacement air outlet due to inadequate pre-filtration are prevented from penetrating into the room in accordance with the filtration efficiency of the fabric.
Features

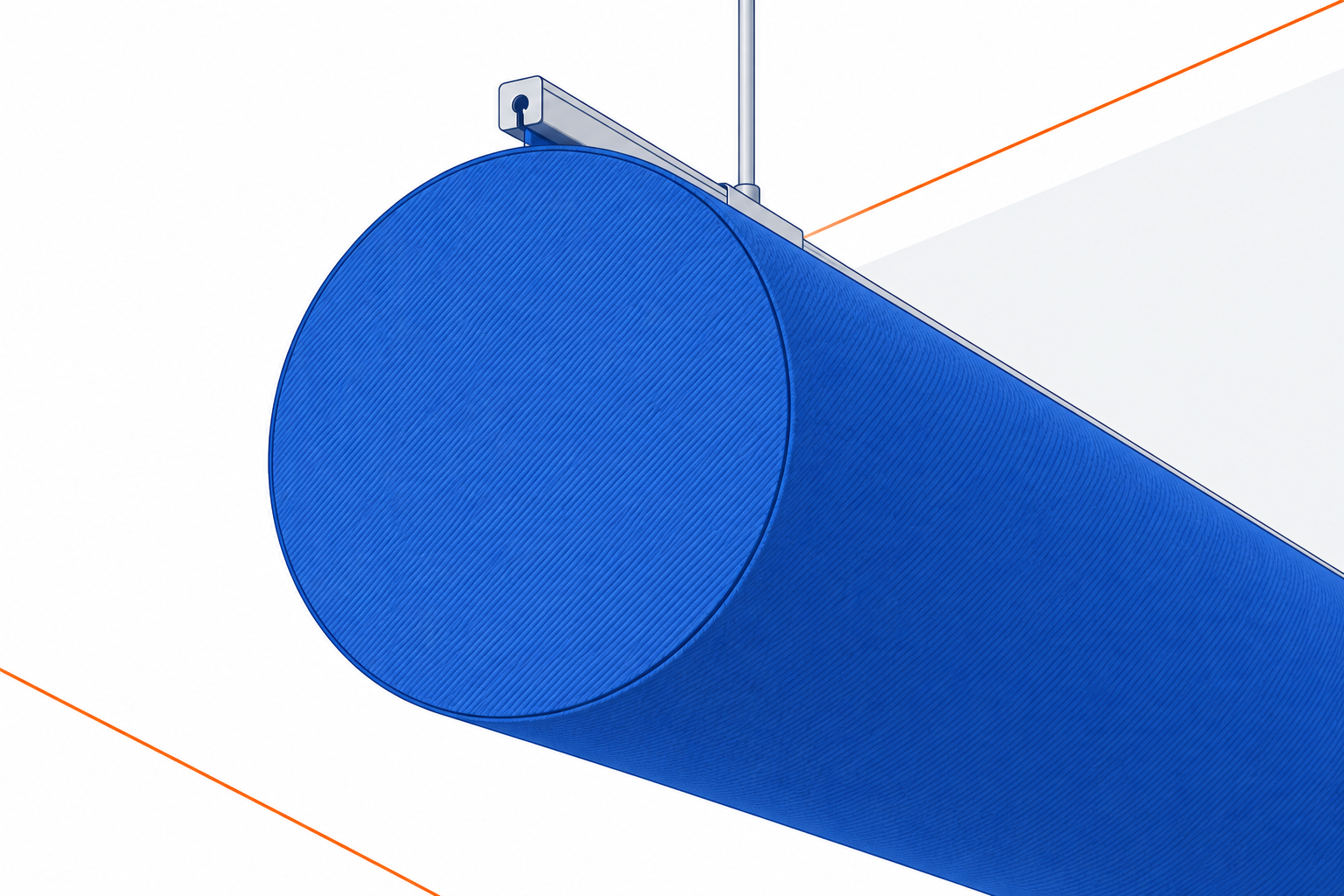

The textile displacement air outlet with filtering effect (LV-DH) allows the supply air to flow out through the textile surface at low velocity. The entire surface of the textile air outlet serves as the air discharge surface, enabling completely uniform distribution of the supply airflow along its length.
No dirt accumulates on the outside of the textile displacement air outlet as a result of inductively entrained contaminants from the surrounding air.
ORAVEN displacement air outlets are used in both industrial environments and comfort applications. The option of color customization and an appealing design ensure an attractive appearance in addition to excellent technical characteristics.
Q26
Mounting system with anodized aluminum rail for KS06 or full keder, including accessories up to the underside of the ceiling. Intermediate suspension up to 3,000 mm, profile length up to 6,000 mm.
Installation instructions for 2-row aluminum rail
Installation instructions for 1-row aluminum rail
S 03 + 04
Mounting system with 1.4401 stainless steel cable for Clip-On or SNH25, including accessories up to the underside of the ceiling. Tensioning fittings for unsupported spans up to 20,000 mm
Installation instructions for 2-row stainless steel cable
Installation instructions for 1-row stainless steel cable
Mounting system with anodized aluminum rail for full keder, with clearance from the ceiling or directly on the ceiling using Q26.
Installation instructions for aluminum rail – direct mounting
Installation instructions for aluminum rail – spaced mounting
revira CS
DIN 4102 B1
Special polyester Trevira CS fabric. Very high dust holding capacity due to the use of a twill weave, very long service life, shrinkage below 1%, no coating, no additives, no condensation.
Fabric Specification
The outstanding properties of the Trevira CS branded special fabric ensure a wide range of applications and a long service life.
The use of a twill weave for this fabric provides a very high dust holding capacity. However, it should be noted that increased dust holding capacity is not a substitute for adequate pre-filtration.
The flame-retardant properties of the Trevira CS special fabric are permanently incorporated into the fiber during the extrusion process and remain unchanged throughout its entire service life.
