Medium velocity Laser 3-6 mm

MV-L

Displacement air outlet made of microperforated Microtex fabric for very long cleaning intervals with only a minimal increase in pressure drop. Application: Cooling and Isothermal Ventilation

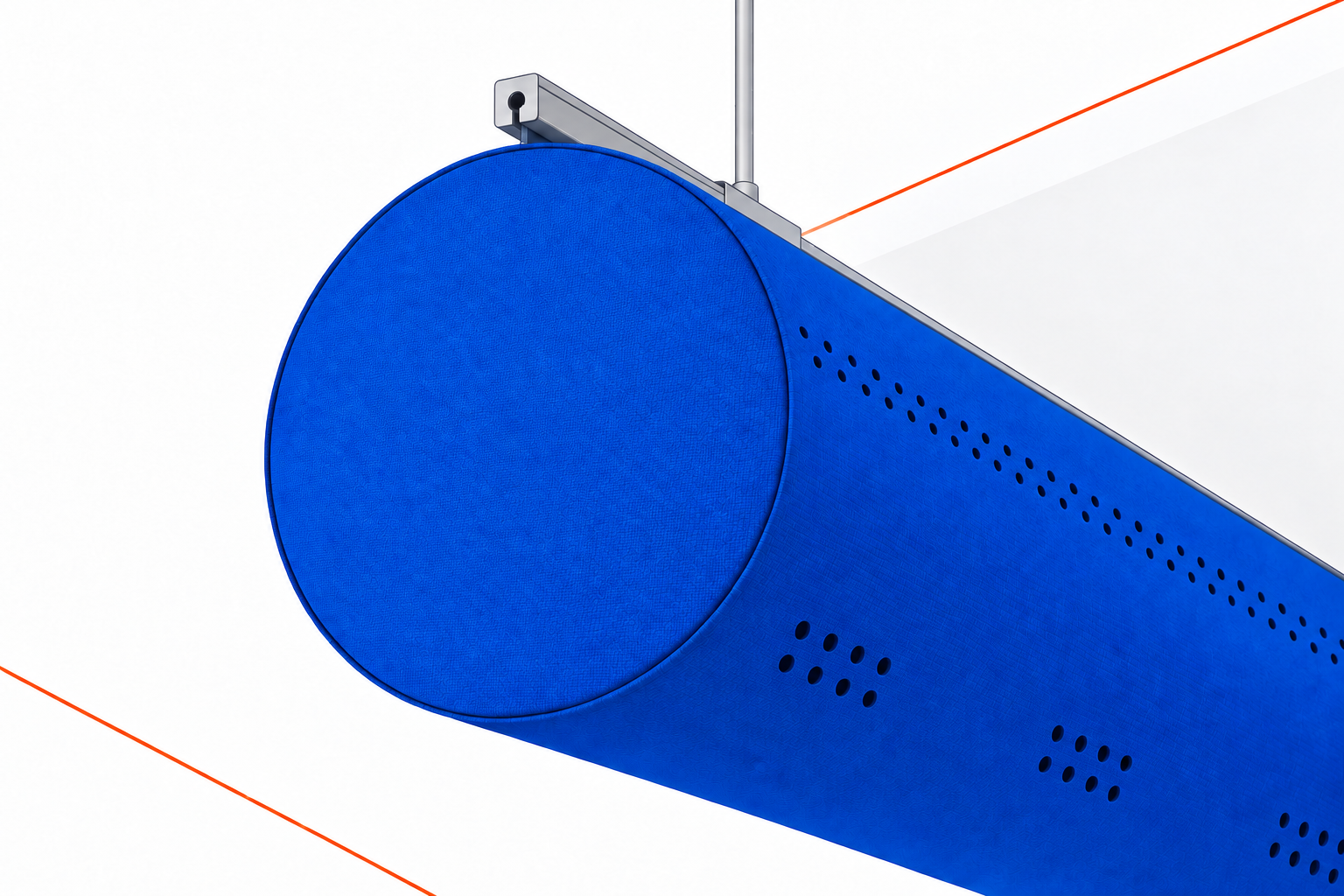

The air flows through a fabric duct that is laser-perforated.

Laser perforations with diameters of 3–6 mm and a freely selectable arrangement provide unlimited flexibility in air distribution.

Within a single system, individual zones can be supplied with different amounts of fresh air.

The MV-L textile duct type opens up an even wider range of applications for textile air distribution systems.

MV-L bridges the gap between the classic LV-M (Microtex) and the HV-N (Nozzles) equipped with plastic nozzles.

Laser perforations with diameters of 3–6 mm and a freely selectable arrangement provide unlimited flexibility in air distribution.

With MV-L, a precisely calculated proportion of air is discharged inductively through laser perforations, spreading the cold-air zone across a wider area around the textile duct.

Negative temperature differences of more than 6 K between the supply air and room air create a downward flow of cold air with high thermal acceleration directly below the conventional textile duct.

Drafts are reliably prevented.
